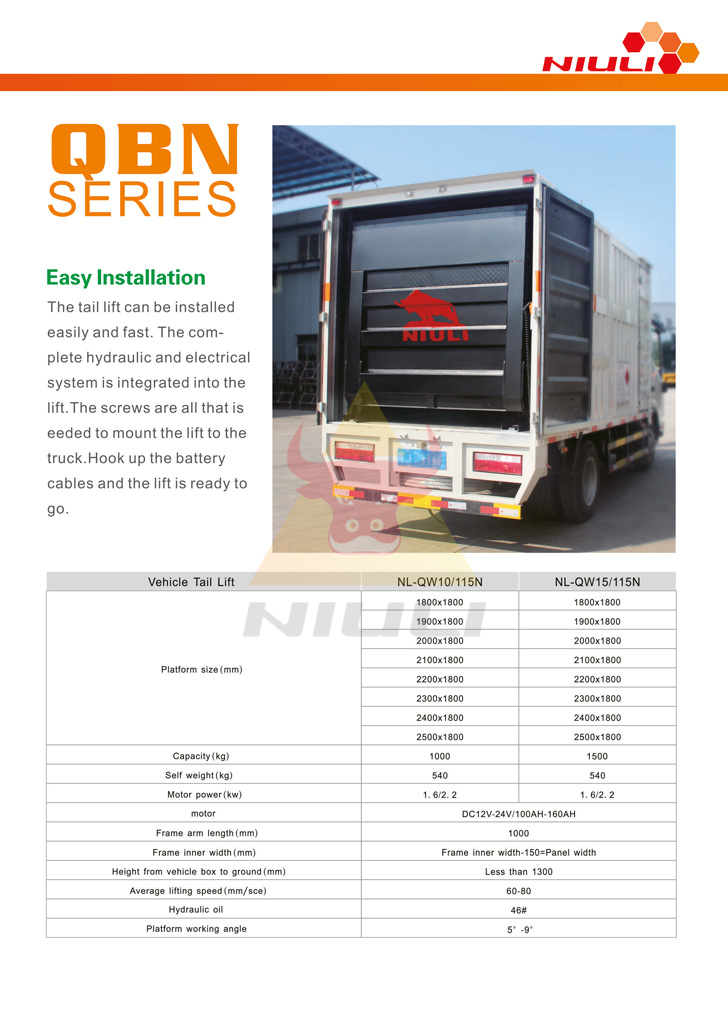

The tail lift can be installed easily and fast.The com-plete hydraulic and electrical system is integrated into the lift.The screws are all that is eeded to mount the lift to the truck.Hook up the battery cables and the lift is ready to go.
QBN vehicle tail lift
Product Name:QBN vehicle tail lift
Product Detail
| Model | NL-QW10/115N | NL-QW15/115N,NL-QB15/145N |
| Platform size(mm) | 1800×1800 | 1800×1800 |
| 1900×1800 | 1900×1800 | |
| 2000×1800 | 2000×1800 | |
| 2100×1800 | 2100×1800 | |
| 2200×1800 | 2200×1800 | |
| 2300×1800 | 2300×1800 | |
| 2400×1800 | 2400×1800 | |
| 2500×1800 | 2500×1800 | |
| Capacity(kg) | 1000 | 1500 |
| Self weight(kg) | 540 | 540/560 |
| Motor power(kw) | 1.6/2.2 | 1.6/2.2 |
| Frame arm length(mm) | 1000 | 1000/1195 |
| Frame inner width(mm) | Frame inner width -150 = Panel width | Frame inner width -150 = Panel width |
| Height from vehicle(mm) | less than 1300 | less than 1300 |
| Platform working angle(°) | 5-9 | 5-9 |
| Average lifting speed(mm/sec) | 60-80 | 60-80 |
| Hydraulic oil | 46# | 46# |
